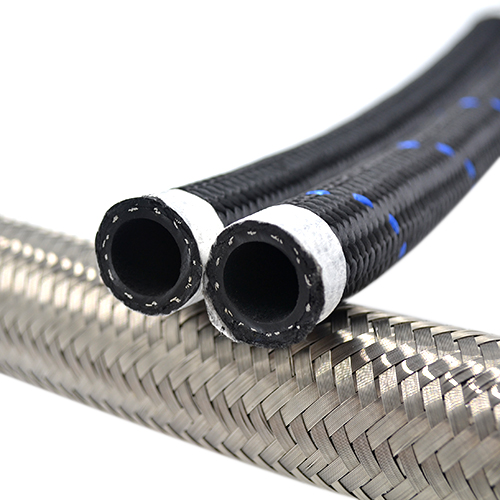

Construction：
1.Inner Tube:NBR synthetic rubber
2.Reinforcement:stainless steel braided layer.
3.Cover:Black nylon braided outside，can be also do black with blue,
black with gold color as customer required.
Temperature: -40 + 149℃
Application:
For use with fuel system,methanol,oil,lubricants,E85,E10,coolant systerm
Specification:

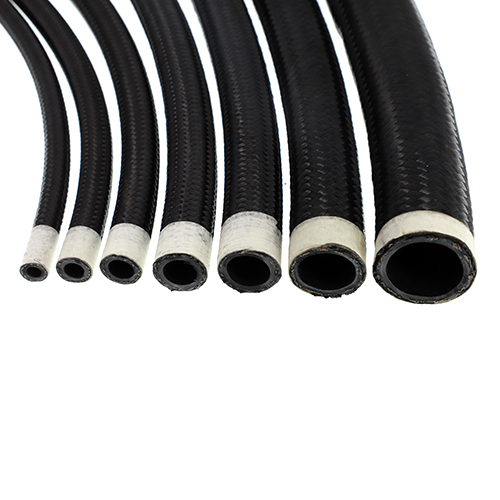

Size | ID | OD | W.P | B.P | Minimum Bend Radius | ||
(mm) | (mm) | BAR | PSI | BAR | PSI | mm | |
An-4 | 5.56 | 11.17 | 35 | 500 | 205 | 3000 | 50.8 |
An-6 | 8.73 | 14.22 | 35 | 500 | 205 | 3000 | 63.5 |
An-8 | 11.12 | 17.2 | 35 | 500 | 205 | 3000 | 88.9 |
An-10 | 14.27 | 20.83 | 35 | 500 | 205 | 3000 | 101.6 |
An-12 | 17.47 | 24.38 | 24 | 350 | 165 | 2400 | 114.8 |
An-16 | 22.22 | 29.38 | 24 | 350 | 165 | 2400 | 139.7 |
Aan-20 | 28.03 | 36.53 | 24 | 350 | 165 | 2400 | 350.5 |
